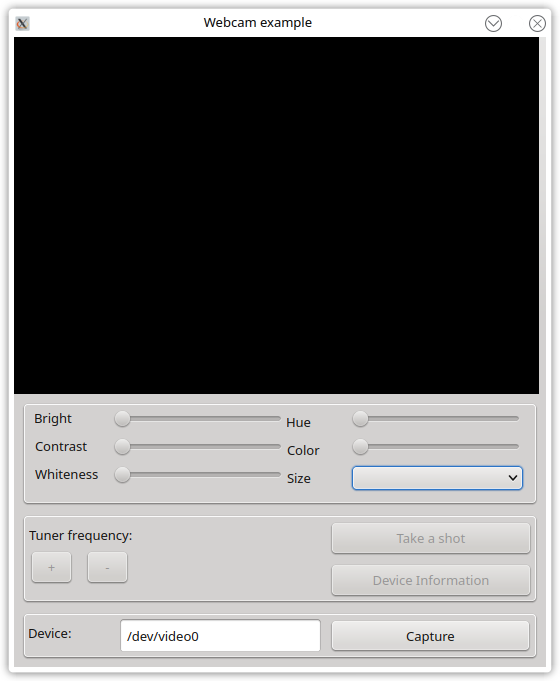

| ' Gambas class file
PRIVATE hWebcam AS VideoDevice PRIVATE OnSet AS BOOLEAN PRIVATE Fps AS DATE PRIVATE nFps AS INTEGER
PUBLIC SUB Button1_Click()
DIM num AS INTEGER DIM Buf AS STRING DIM sSize AS STRING
IF hWebCam THEN Bright.Enabled = FALSE Contrast.Enabled = FALSE Hue.Enabled = FALSE Whiteness.Enabled = FALSE Colour.Enabled = FALSE cmbSize.Enabled = FALSE FreqUp.Enabled = FALSE FreqDown.Enabled = FALSE TxtDevice.Enabled = TRUE BtnTakeShot.Enabled = FALSE Button2.Enabled = FALSE hWebCam = NULL Tmr.Enabled = FALSE Button1.Caption = ("Capture") RETURN END IF
TRY hWebCam = NEW VideoDevice(TxtDevice.Text) IF ERROR THEN Message.Error(("Unable to open video device")) RETURN END IF hWebCam.Source = hWebCam.TV + hWebCam.PAL
Button1.Caption = ("Stop") BtnTakeShot.Enabled = TRUE Button2.Enabled = TRUE Bright.Enabled = TRUE Contrast.Enabled = TRUE Hue.Enabled = TRUE Whiteness.Enabled = TRUE Colour.Enabled = TRUE cmbSize.Enabled = TRUE sSize = CStr(hWebCam.Width) & "x" & CStr(hWebCam.Height) IF cmbSize.Find(sSize) < 0 THEN cmbSize.Add(sSize) TRY cmbSize.Text = sSize FreqUp.Enabled = TRUE FreqDown.Enabled = TRUE TxtDevice.Enabled = FALSE OnSet = TRUE Bright.Value = hWebcam.Bright Contrast.Value = hWebcam.Contrast Hue.Value = hWebCam.Hue Whiteness.Value = hWebCam.Whiteness Colour.Value = hWebCam.Color LblFreq.Text = ("Tuner frequency:") & " " & hWebCam.Tuner.Frequency
WAIT 0.001 OnSet = FALSE Tmr.Delay = 10 Tmr.Enabled = TRUE ME.Caption = hWebCam.Name Fps = Now() nFps = 0
END
PUBLIC SUB Bright_Change()
IF OnSet THEN RETURN hWebCam.Bright = Bright.Value
END
PUBLIC SUB Contrast_Change()
IF OnSet THEN RETURN hWebCam.Contrast = Contrast.Value
END
PUBLIC SUB Whiteness_Change()
IF OnSet THEN RETURN hWebCam.Whiteness = Whiteness.Value
END
PUBLIC SUB Colour_Change()
IF OnSet THEN RETURN hWebcam.Color = Colour.Value
END
PUBLIC SUB Hue_Change()
IF OnSet THEN RETURN hWebCam.Hue = Hue.Value
END
PUBLIC SUB cmbSize_Click()
DIM aSize AS String[]
aSize = Split(cmbSize.Text, "*x*") hWebcam.Resize(CInt(aSize[0]), CInt(aSize[1]))
END
PUBLIC SUB Tmr_Timer()
DIM T1 AS DATE DIM sBuf AS STRING DIM hPict AS Picture
Tmr.Enabled = FALSE
'Try PictureBox1.Picture = hWebCam.Picture Draw.Begin(dwgVideo) hPict = hWebCam.Image.Picture Draw.Picture(hPict, (dwgVideo.W - hPict.W) \ 2, (dwgVideo.H - hPict.H) \ 2) Draw.End
IF NOT ERROR THEN nFps = nFps + 1 T1 = Now() - Fps IF Second(T1) >= 1 THEN ME.Caption = hWebCam.Name & " (" & nFps & " " & ("fps") & ")" Fps = Now() nFps = 0 END IF END IF Tmr.Enabled = TRUE
END
PUBLIC SUB Form_Close()
Tmr.Enabled = FALSE hWebCam = NULL
END
PUBLIC SUB FreqUP_Click()
hWebCam.Tuner.Frequency = hWebCam.Tuner.Frequency + 5 LblFreq.Text = ("Tuner frequency:") & " " & hWebCam.Tuner.Frequency
END
PUBLIC SUB FreqDown_Click()
hWebCam.Tuner.Frequency = hWebCam.Tuner.Frequency - 5 LblFreq.Text = ("Tuner frequency:") & " " & hWebCam.Tuner.Frequency
END
PUBLIC SUB Button2_Click()
DIM sCad AS STRING
sCad = ("Device Bus:") & " " & hWebCam.Bus & "\n" sCad = sCad & ("Device Driver:") & " " & hWebCam.Driver & " " & ("Version:") & " " & hWebCam.Version & "\n" sCad = sCad & ("Device Name:") & " " & hWebCam.Name & "\n" sCad = sCad & ("Max. Resolution:") & " " & hWebCam.MaxWidth & "x" & hWebCam.MaxHeight & "\n" sCad = sCad & ("Min. Resolution:") & " " & hWebCam.MinWidth & "x" & hWebCam.MinHeight & "\n"
Message.Info(sCad)
END
PUBLIC SUB BtnTakeShot_Click()
TRY hWebCam.Save(User.Home & "/webcam_shot.png") IF NOT ERROR THEN Message.Info(("Image saved as ") & User.Home & "/webcam_shot.png")
END
PUBLIC SUB Panel2_MouseDown()
END
|
