chart

Comment faire un Graphe avec le composant gb.chart


Tout d'abord, activez le composant gb.chart dans votre projet.

Structure de données graphiques

La structure du composant chart est simple. Un gb.chart a :

- Un tableau de jeu de données (vous pouvez imaginer que c'est la rangée du jeu de données). Chaque jeu de données a un nom (en-tête de la rangée du tableau de données).

par défaut un premier jeu de données est créé.

- Une en-tête de tableau (en-tête de colonne de tableau). Cela définit le nombre de valeurs par séries que le graphique contient.

- Un jeu de données est un tableau qui contient des données en virgule flottante.

Exemples

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
'Initialise l'en-tête des colonnes

Chart.Headers = ["Tic", "Tac", "Toes"]

'Je n'ai qu'unjeu de données, pas besoin d'en ajouter un.
'Assigne les valeurs :

Chart[0].Values [1.0, 2.0, 3.0] ' Le .0 force a renvoyer un tableau float[]

'mais vous pouvez employer cette manière également : Chart[0].Add(1.0)

'Taille automatique des fontes, proportionnelle.
'Taille de fonte normale pour un graphique des 2/3 de la taille d'écran.
Chart.Proportionnal = TRUE

'Définit le titre
Chart.Title = "My Chart"


'Rend la legende visible
Chart.Legend.Visible = TRUE
Chart.Legend.Title = "My Legend"

Chart.YAxe.ShowIntervalLines.Visible = TRUE

'Type de graphique
Chart.Type = ChartType.Lines

'Couleurs utilisateur
Chart.Style = ChartStyle.Custom
Chart.Colors.Values = [Color.yellow, Color.red, Color.Blue]


Enfin, tracé du graphique. Par exemple dans un tableau drawing :

1
2
3
4
5
6
7
PUBLIC SUBDrawingArea1_Draw()

Chart.Width = DrawingArea1.ClientHeight
Chart.Height = DrawingArea1.ClientWidth
Chart.Draw()

END


Un autre exemple, ici de la logithèque de Gambas :



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
' Gambas class file

'Uploaded to the Gambas Farm 17/05/2017
'18/05/2017 Added Chart Types and resizable Chart
'Bugs or comments to bugs@cogier.com
'Code altered from this site 'https://novatocodegambas.blogspot.com/2015/09/ejemplo-de-componente-gbchart-graficas.html'
'Updated for QT5 08/12/22

bSkip AS BOOLEAN 'To skip the AllSliders routine while setting up the values
bPlusMinus AS BOOLEAN

PUBLIC SUB Form_Open()

Chart.CountDataSets = 2 'How many data sets do you require = 2
Chart.Headers.Values = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday"] 'Header values
Chart.Title.Text = "Percent" 'Chart heading
Chart[0].Values = [20, 50, 10, 60, 30] 'Chart initial values
Chart[1].Values = [15, 85, 25, 35, 55] 'Chart initial values
'Chart.Legend.Visible = True 'Makes the Legend visible
Chart.Legend.Title = "Days" 'Title of chart
Chart.Type = ChartType.Lines 'Type of chart
Chart.BackGround = Color.Yellow 'Sets the background colour
SliderBackGround.value = 16776960
LabelColour.text = Str(16776960)
Chart.Border = FALSE 'Gets rid of the border
DrawingArea1.Refresh 'Refresh the Drawing area

Slider1.value = Chart[0].Values[0] 'Slider value matches Chart[0].Values
Slider2.value = Chart[0].Values[1] 'Slider value matches Chart[0].Values
Slider3.value = Chart[0].Values[2] 'Slider value matches Chart[0].Values
Slider4.value = Chart[0].Values[3] 'Slider value matches Chart[0].Values
Slider5.value = Chart[0].Values[4] 'Slider value matches Chart[0].Values
Slider6.value = Chart[1].Values[0] 'Slider value matches Chart[0].Values
Slider7.value = Chart[1].Values[1] 'Slider value matches Chart[0].Values
Slider8.value = Chart[1].Values[2] 'Slider value matches Chart[0].Values
Slider9.value = Chart[1].Values[3] 'Slider value matches Chart[0].Values
Slider10.value = Chart[1].Values[4] 'Slider value matches Chart[0].Values
bSkip = TRUE 'Now the AllSliders routing can go to work
AllSliders_Change 'Run the AllSliders_Change routine

END

PUBLIC SUB AllRadio_Click() 'When a RadiButton is clicked

DIM oObj AS OBJECT 'Object needed

FOR EACH oObj IN HBoxType.Children 'For each of the Children (RadioButtons in this case) in the HBoxType
IF oObj.Value = TRUE THEN Chart.Type = Val(oObj.tag) 'If the Value is true (it's been clicked) then set the chart type to the value of the RadioButton's Tag
NEXT

DrawingArea1.Refresh 'Refresh the DrawingArea

END

PUBLIC SUB DrawingArea1_Draw() 'Required to draw the chart

DIM siHeight, siWidth AS SHORT 'For Height and Width of the Chart

siHeight = DrawingArea1.Height - 10 'Set the value to 10 less than the DrawingArea Height
siWidth = DrawingArea1.Width - 10 'Set the value to 10 less than the DrawingArea Width
IF siHeight < 10 THEN siHeight = 10 'Make sure the value is not too small
IF siWidth < 10 THEN siWidth = 10 'Make sure the value is not too small

Chart.Height = siHeight 'Set the Chart Height
Chart.Width = siWidth 'Set the Chart Width
Chart.Draw 'Draw the chart

END

PUBLIC SUB AllSliders_Change() 'If a slider is moved..

IF NOT bSkip THEN RETURN 'Get out of here during inital setup
Chart[0].Values = [Slider1.Value, Slider2.Value, Slider3.Value, Slider4.Value, Slider5.Value] 'Set the chart values up based on the slider values
Chart[1].values = [Slider6.Value, Slider7.Value, Slider8.Value, Slider9.Value, Slider10.Value] 'Set the chart values up based on the slider values
DrawingArea1.Refresh 'Redraw the chart

ValueBox1.value = Slider1.Value 'Set the ValueBox to show slide value
ValueBox2.value = Slider2.Value 'Set the ValueBox to show slide value
ValueBox3.value = Slider3.Value 'Set the ValueBox to show slide value
ValueBox4.value = Slider4.Value 'Set the ValueBox to show slide value
ValueBox5.value = Slider5.Value 'Set the ValueBox to show slide value
ValueBox6.value = Slider6.Value 'Set the ValueBox to show slide value
ValueBox7.value = Slider7.Value 'Set the ValueBox to show slide value
ValueBox8.value = Slider8.Value 'Set the ValueBox to show slide value
ValueBox9.value = Slider9.Value 'Set the ValueBox to show slide value
ValueBox10.value = Slider10.Value 'Set the ValueBox to show slide value

END

PUBLIC SUB SliderBackGround_Change() 'Background slider

Chart.BackGround = SliderBackGround.Value 'Set the Chart background colour to the value of the slider
LabelColour.Text = Str(SliderBackGround.Value) 'Put the value in the Label
DrawingArea1.Refresh 'Refresh the drawing

END

PUBLIC SUB Overs_Enter() 'If the mouse Enters the 'Overs' panels then..

IF LAST.name = "PanelPlus" THEN bPlusMinus = TRUE 'If the mouse is over the 'Plus' panel then bPlusMinus = True
IF LAST.name = "PanelMinus" THEN bPlusMinus = FALSE 'If the mouse is over the 'Minus' panel then bPlusMinus = False
Timer1.Start 'Start the timer

END

PUBLIC SUB Overs_Leave() 'If the mouse Leaves the 'Overs' panels then..

Timer1.Stop 'Stop the timer

END

PUBLIC SUB Timer1_Timer() 'Timer

DIM iSlider AS INTEGER = SliderBackGround.Value 'iSlider = the Sliders Value

IF NOT bPlusMinus THEN 'If bPlusMinus is False then..
DEC iSlider 'iSlider = iSlider - 1
IF iSlider < 0 THEN iSlider = 0 'Make sure iSlider stays above -1
Chart.BackGround = iSlider 'Set the Chart Background to iSlider
ELSE 'Else (If bPlusMinus is True then..)
INC iSlider 'iSlider = iSlider + 1
IF iSlider > 16777215 THEN iSlider = 16777215 'Make sure iSlider stays Below 16777216
Chart.BackGround = iSlider 'Set the Chart Background to iSlider
END IF

LabelColour.Text = Str(iSlider) 'Add the colour Value to the Label
SliderBackGround.value = iSlider 'Change the Slider Value
DrawingArea1.Refresh 'Refresh the Chart

END

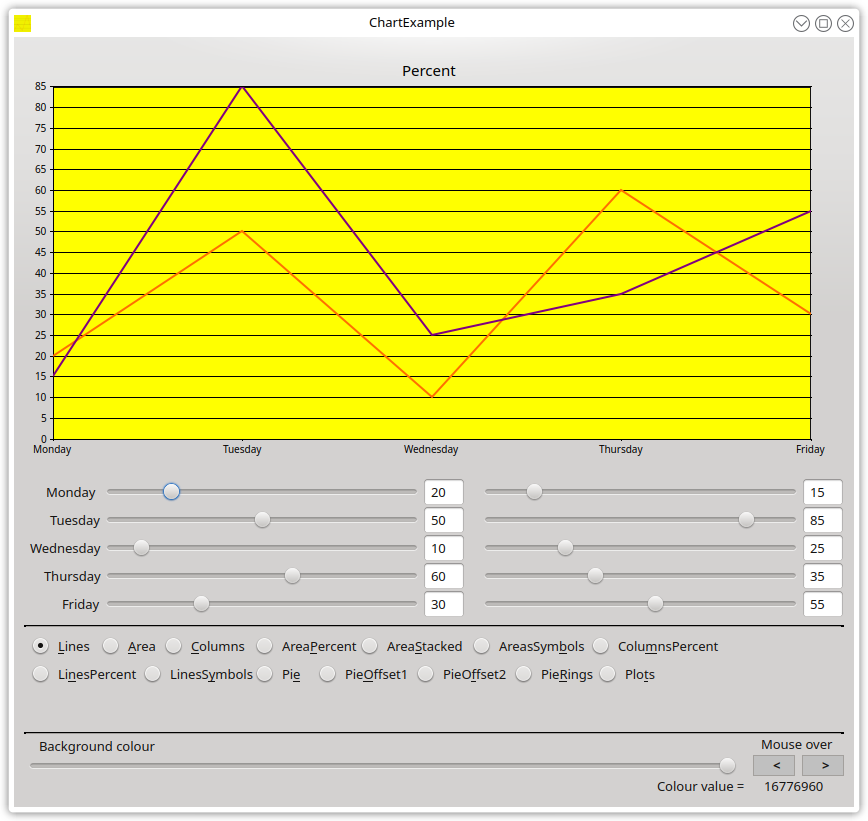

Une image, application de ce code :



====================
